Stainless Steel Camlock Fittings

Home Products Camlock Fittings Stainless Steel Camlock Fittings Stainless Steel Camlock Fittings Multi H

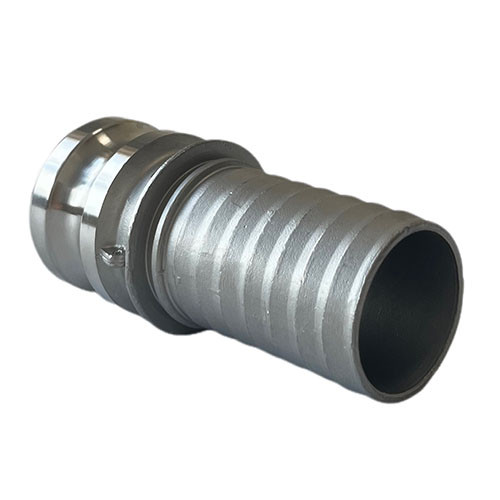

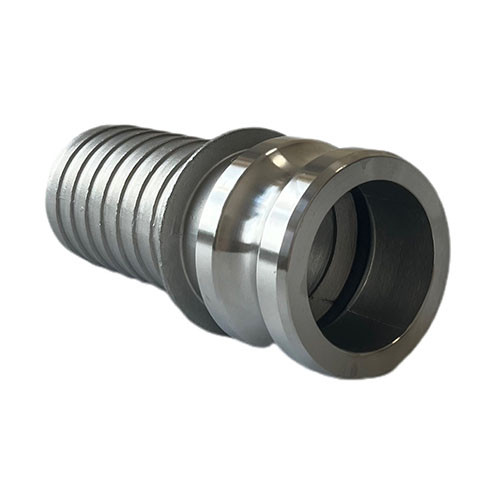

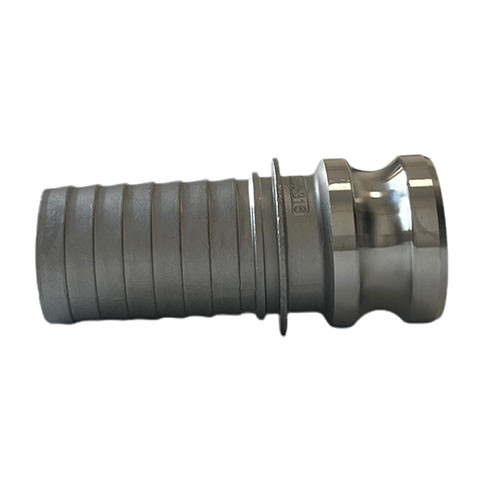

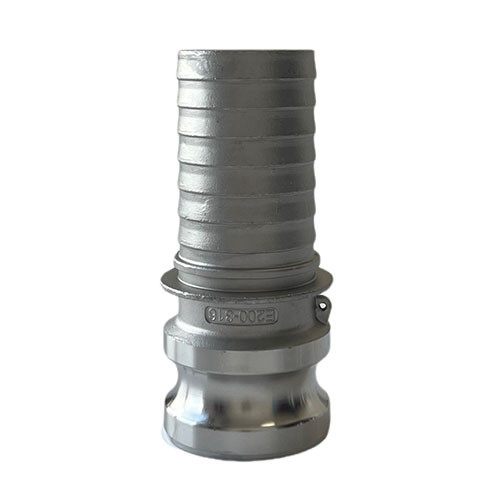

Stainless Steel Camlock Fittings Multi Hose Tail Type E

Product Item : Type E Male adaptor X Hose Shank
Category： Stainless Steel Camlock Fittings
Items No. : Type E
Material : Stainless Steel
Size: 1/2" to 6"
Methods:Investment casting
Used with adapters Type B , Type C, Type D, Type DC
INQUIRY EMAIL

Product Description:

Camlock Fittings is a reliable quick connect coupling for use on hose,pipe,tubing and tanks conveying a wide variety of liquids,
dry bulk materiales and vapours inculding cooling water,fuels, chemical, cosmetics, food products, adhesives,dyes,pharmaceuticals

pallets and much more.

Material :

● SS316 ( CF8M ) / SS304 ( CF8 )

Size Range :

● 1/2" , 3/4" , 1" , 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5" , 6"

Thread :

● NPT,BSP ( BSPP ,BSPT) , G ( ISO228.1), R ( DIN2999)

Handle :

● SS304

Methods:

● Investment casting

Working Pressure Ranging :

● 1/2" 150 psi

● 3/4" to 2" 250 psi

● 2-1/2" 225 psi

● 3" 200 psi

● 4" 150 psi

● 5" & 6 " 75 psi

Seal :

● Buna seals are fitted as standard.

● Other materials on request ( EPDM , VITON , PTFE , ect .)

Available Type : A, B , C , D , E , F , DC , DP

                ● Part "A" Female Threaded Male Adaptor
            ● Part "B" Male Threaded Female Coupler
            ● Part "C" Female Coupler c/w Hose Tail
            ● Part "D" Female Threaded Female Coupler
            ● Part "E" Male Adaptor c/w Hose Tail
            ● Part "F" Male Threaded Male Adaptor
            ● Part "DC" Female Coupler Dust Cap
            ● Part "DP" Male Adaptor Dust Plug
