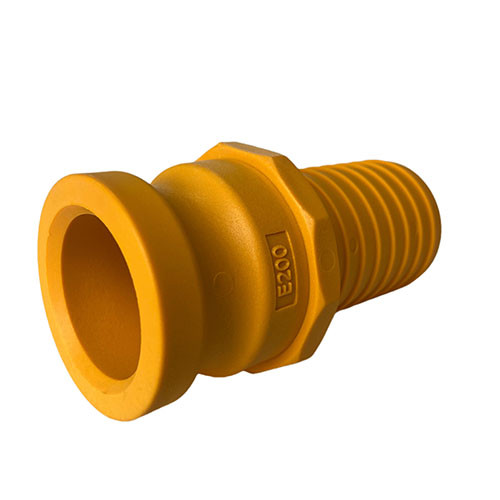

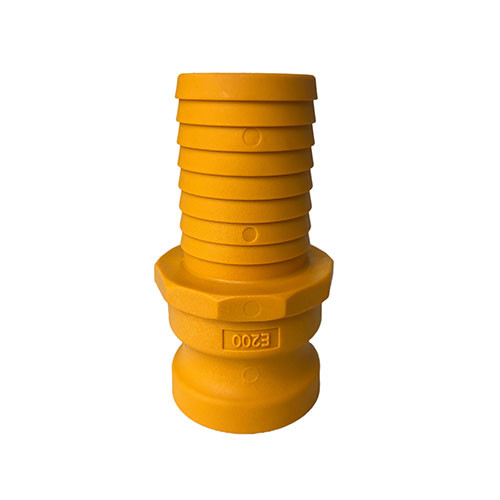

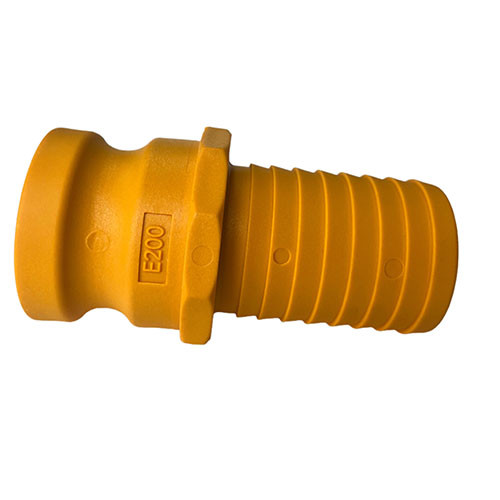

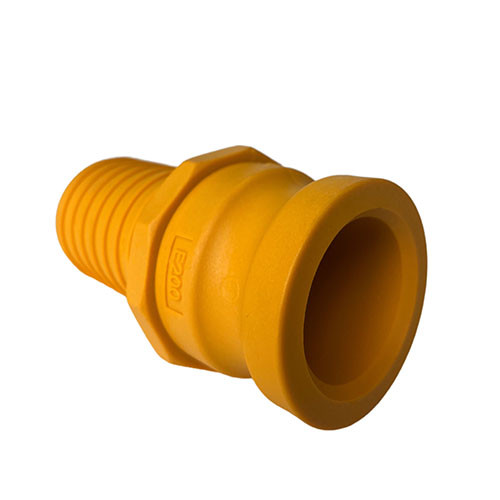

Nylon Camlock Fittings Multi Hose Tail Type E

Product Item : Type E Male adaptor X Hose Shank
Category： Nylon Camlock Fittings
Items No.: Multi Hose Tail Type E
Material : Nylon
Size: 1/2" to 4"
Methods: Injection
Used with Couplers Type B, Type C, Type D, Type DC
INQUIRY EMAIL

Product Description:

Camlock Fittings is a reliable quick connect coupling for use on hose,pipe,tubing and tanks conveying a wide variety of liquids,
dry bulk materiales and vapours inculding cooling water,fuels, chemical, cosmetics, food products, adhesives,dyes,pharmaceuticals

pallets and much more.

Material :

● Nylon

Size Range :

● 1/2" , 3/4" , 1" , 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"

Thread :

● NPT,BSP ( female thread parallel BSPP , male thread tapered BSPT )

Handle :

● Stainless Steel

Methods:

● Injection

Working Pressure Ranging :

● 1/2" to 2-1/2" 100 psi

● 3" & 4" 50 psi

Seal :

● Buna seals are fitted as standard.

● Other materials on request ( EPDM , VITON , PTFE , ect .)

Available Type : A, B , C , D , E , F , DC , DP

               ● Part "A" Female Threaded Male Adaptor
            ● Part "B" Male Threaded Female Coupler
            ● Part "C" Female Coupler c/w Hose Tail
            ● Part "D" Female Threaded Female Coupler
            ● Part "E" Male Adaptor c/w Hose Tail
            ● Part "F" Male Threaded Male Adaptor
            ● Part "DC" Female Coupler Dust Cap
            ● Part "DP" Male Adaptor Dust Plug
